Direct/Indirect Fire Cue Simulator Smokes

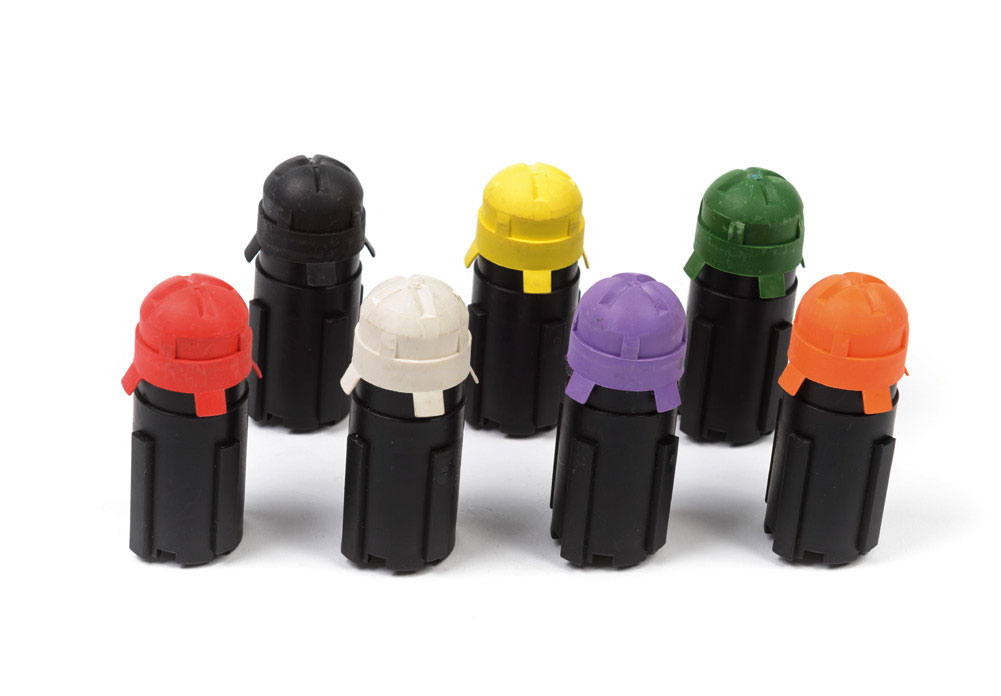

Colour-Smoke-Cartridges are used to indicate and to differentiate effects from hits of direct and indirect fire. The cartridges are fired from Light-weight Gunnery Signature Simulators (LGSS) or from type classified launchers.
APPLICATION
Laser-based and/or radio transmitted “firing” of integrated weapons during force-on-force training either in close-quarter combat scenarios, or battlefield training demand a visual differentiation between “firing” and “hit”. Depending on the training doctrine of the users certain colours stipulate hits whilst “black smoke” indicates a “tank kill”.
Prolonged burning times and extended visibility provide clear information to all participants during combat training.
CHARACTERISTICS
Signature: Smoke: yellow, red, blue, green, white, orange, violet and black
Sound level: Approx. 125 dB at 1m
Smoke duration: 8-15 sec.
Visibility: Approx. 1.800m
Safety distance: 1m in firing direction and 0,5m to the sides (ear protection)
PART CODES
Yellow: 9203300
Red: 9204100
Blue: 9203200
Green: 9204700
White: 9201800
Orange: 9203400
Violet: 9204200
Black: 9204600
